Famicom in a cartridge

[Pit]

This weekend it's time for some fun.

I have a naked neofami clone since I took some parts of it to finish the famicom slot on my Nes. I have also a Famicom Game shell of a game I killed trying to make a cartmod.

So I decided to use both parts to make a "famicom in a cartridge".




Beggining of cutting and study  of what can be put inside the shell :

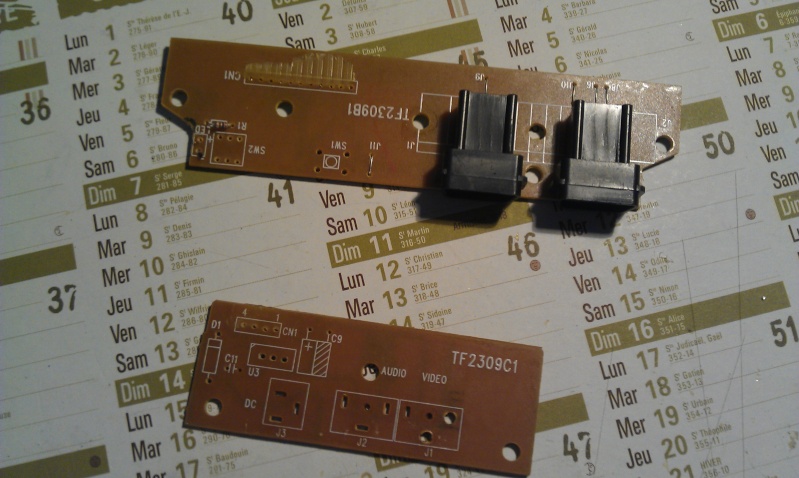

Only the mother board with cartridge slot fits in the shell, for audio, video, power and controls, I had to desolder all connectors. Controls use db9 connectors, I took new ones.

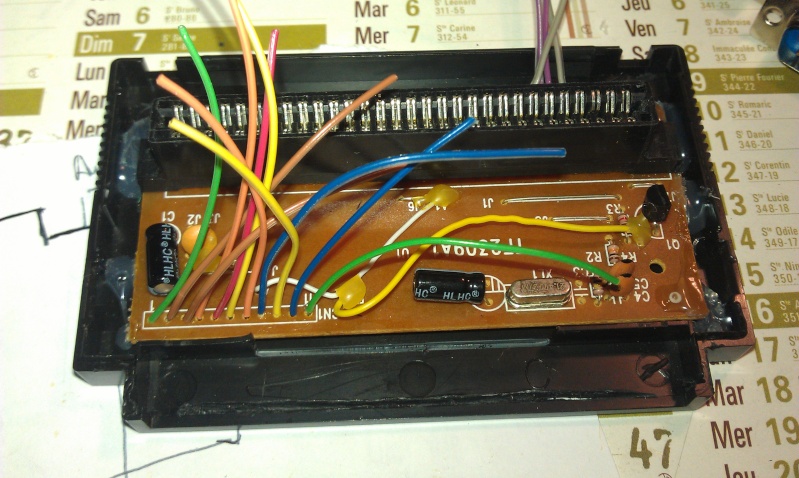

Wiring, cutting job, all is in place :

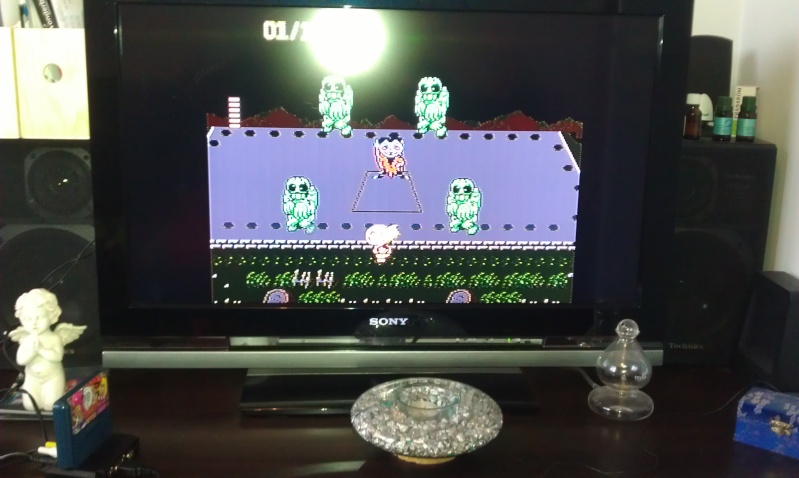

Quality control



Victoly !

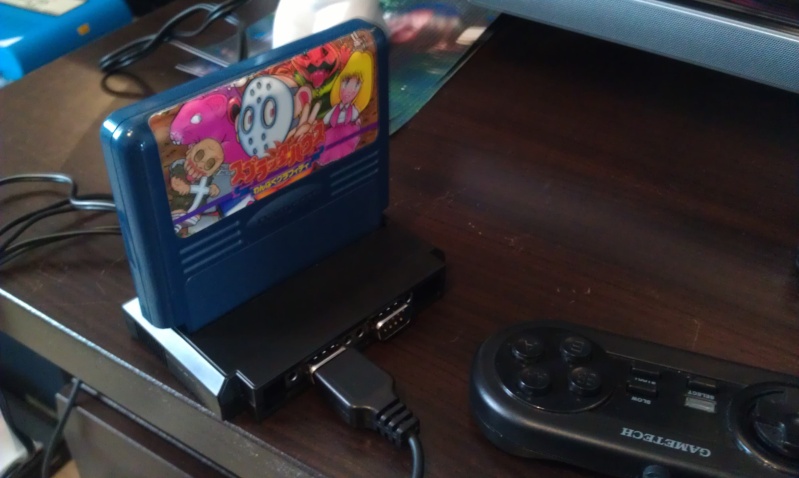

Then I shut the shell and made a label :

[UglyJoe]

Wow, great work

[Sarahconner]

High five!
Much respect

[keropi]

VERY nice!!!

[P]

Haha pretty cool!

[jpx72]

Cool! Had much free time?
The label adds a very nice touch!
Really nice!

[L___E___T]

I love it!  I wish I had an NTSC clone like that.  The NTSC clones  have I don't like the colours, the PAL clones I have are 50hz

[NintendoKing]

This is the coolest Famiclone ever, wins my vote!

[80sFREAK]

I see HOT GLUE  LOL No worries, bud, just kidding.

Unusual and excellent!

[Pit]

I see HOT GLUE  LOL .

I was expecting someone to say that^^.

For those who sent me pms : Sorry I'm not selling the famicom in a cartridge and I'm not planning to make some more.

[aha2940]

And I thought putting a famiclone inside an NES cartridge was good work...this is beautiful! Who wants to try to fit an Atari 2600 inside an Atari 2600 game shell?

Regards.

[NintendoKing]

It could be done maybe with the Atari Flashback 2, just add the cartridge connector. Tac-switches would be all over the cartridge though

[aha2940]

It could be done maybe with the Atari Flashback 2, just add the cartridge connector. Tac-switches would be all over the cartridge though

Wow...wait a minute...can a cartridge connector be added to an atari flashback to have a full Atari 2600?

[NintendoKing]

Yes and you can buy the parts for $12, it's apparently the best Atari 2600 because it's AV native and uses true 2600 components.

Guides are all over AtariAGE and it's a super popular mod.
Only the Atari Flashback 2 has the ability, AF 1 was a famiclone (it serious is), and AF 3 & 4 only emulate.

[FAMICOM_87]

nice MOD    did you consider to put the slot on real cartridge hole
