Famicom Pocketgames 150in1 (3.3V - 5V)

[80sFREAK]

As above.

[krzy]

Modifying this existing cart pictured above would be the worst nightmare, in fact it's not even possible in any way. The game genie sort of adapter transceiving 3V-5V is the only way to go here

Of course it is possible and quite easy. All you have to do is:

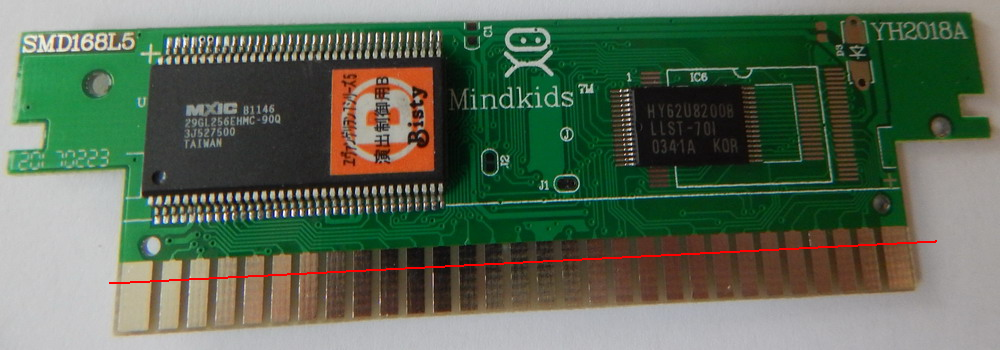

1) Cut a line using sharp knife through the pads you want to modify (probably all pads if you are lazy)

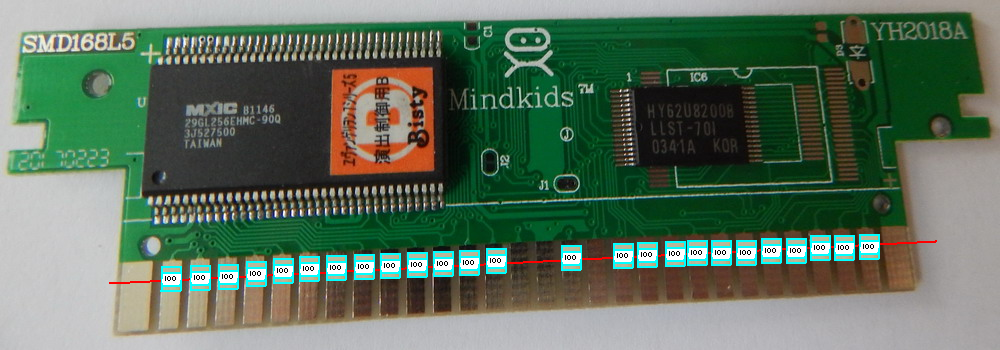

2) Solder 100R 0603 resistors for all lines (except GND, +5V, /IRQ, CIRAM-A10, AUDIO) - those lines can be shorted.

[FAMICOM_87]

WoW many thanks to you too!

[FAMICOM_87]

Finally I made an adapter it is very ugly
but actually even regular old  with chips work with it

[80sFREAK]

Is it working?

[FAMICOM_87]

Is it working?

Yes it works, I tested it with this cartrage on the picture 150 in 1, and one old multicard with big chips works as well

[80sFREAK]

Why bother about appearance, if not tend to sell?

[FAMICOM_87]

Why bother about appearance, if not tend to sell?

I do not

[jpx72]

Awesome adapter FAMICOM_87! Would love one myself, but don't have the nerves to solder so many SMDs.

[FAMICOM_87]

Thanks,  jpx72,   The hardest part was not soldering, but cutting the copper layer with sharp knife
Actually the soldering of those SMD was a peace of cake . just pre-tin then put SMD with pincers, and with minimum solder heat first end, then other

[FAMICOM_87]

I found a 120 in version and guess what ! Japanese Contra 1 is included and even translated in English !
https://www.youtube.com/watch?v=upRxTk_kfi8
